MapsKit32©

MapsKit32 is a graphical maps system for real time management of security and safey installations (intrusion, fire detection, gas detection, CCTV)
It's based on 32 bit Windows (Win 9X, Me, NT/4, 2000 e XP) PCs and on specific hardware components.
The windows based visualisation gives facilities to report on graphical maps (i.e.: building plants) the signalisations coming from installation, in a very intuitive and immediate way.
There are two different system typologies:

  • MapsKit32S (serial version) for a maximum of 8 panels and a single operating point (PC).
  • MapsKit32Net (TCP/IP net) for multiple panels and multiple operating points (PCs

MapsKit32/S: mixed solution

It's possible to exceed geographical limits of previous solution distributing the serial interfaces, of different subsystems, on a TCP/IP net by appropriate devices.
This solution permits to supervising, from a single operating point, installations geographically distributed on very wide area

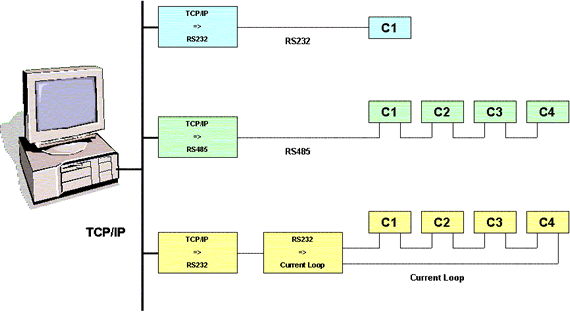

The derived diagram is shown in Figure
